SKU: 578538

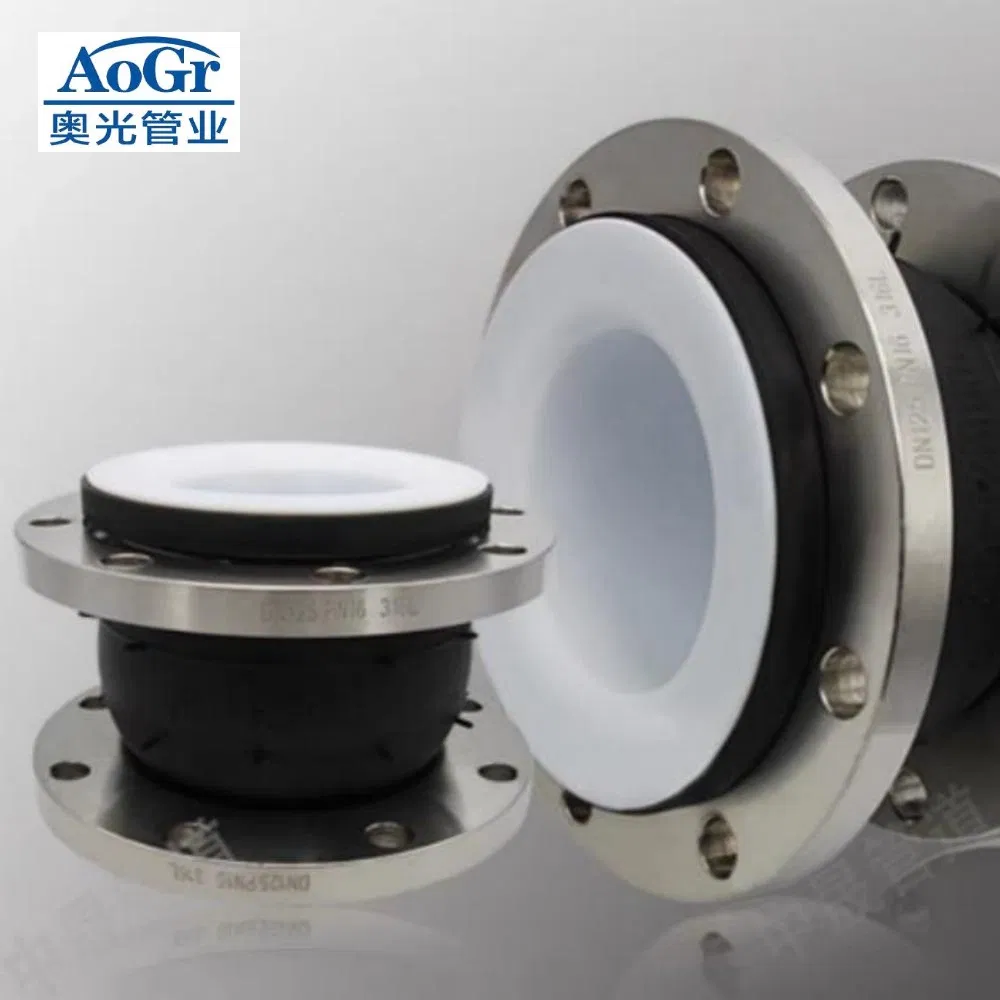

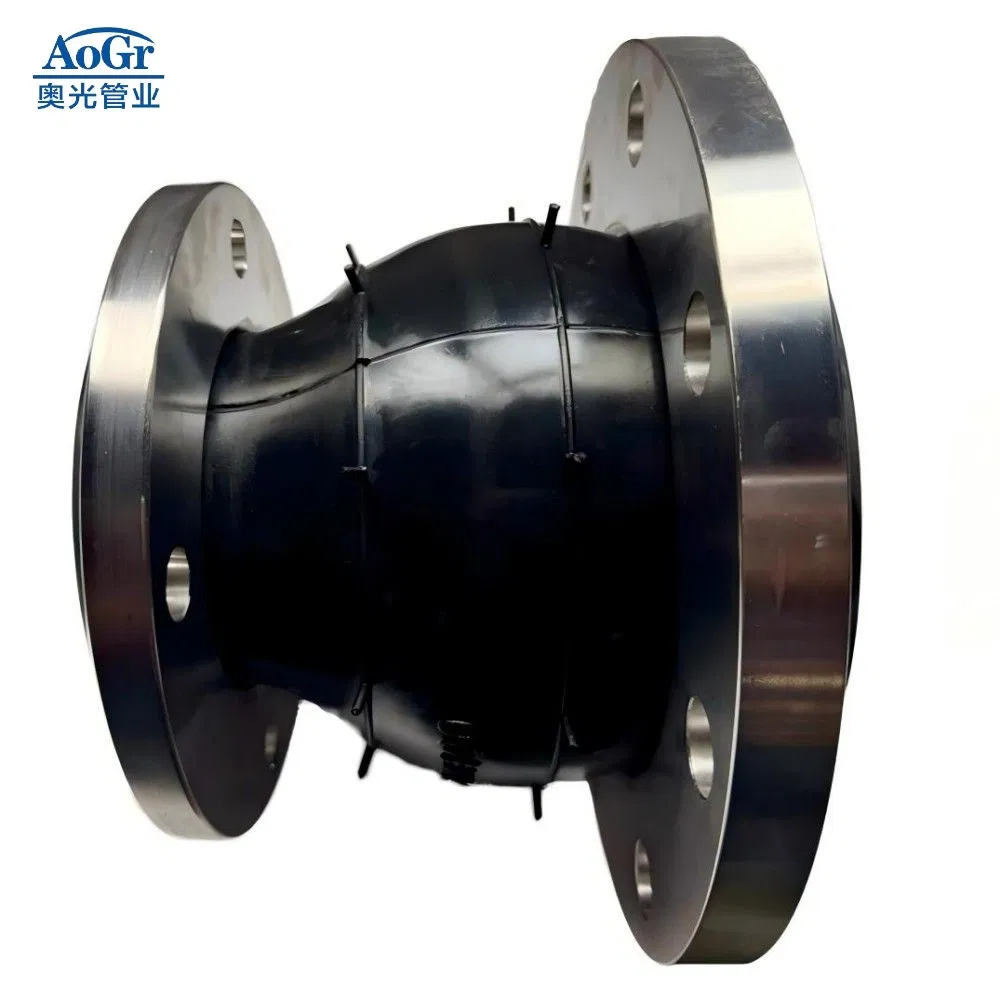

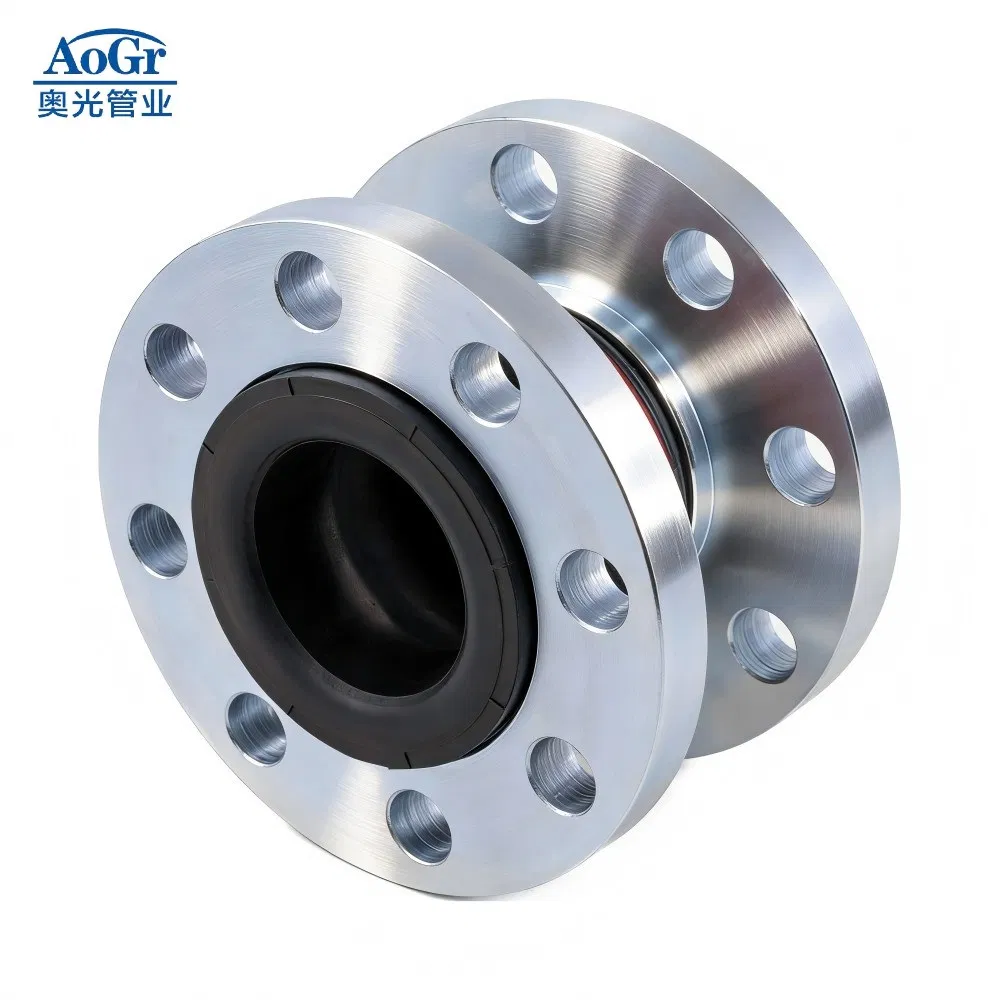

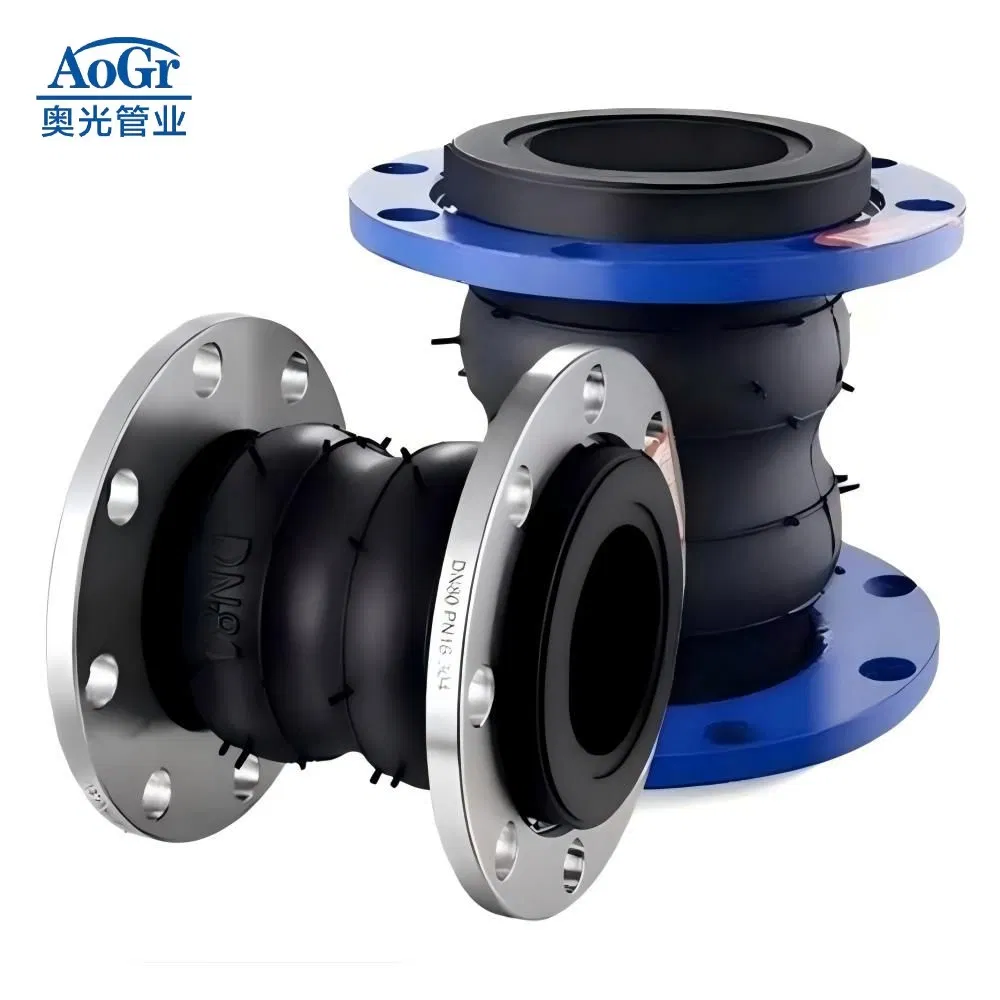

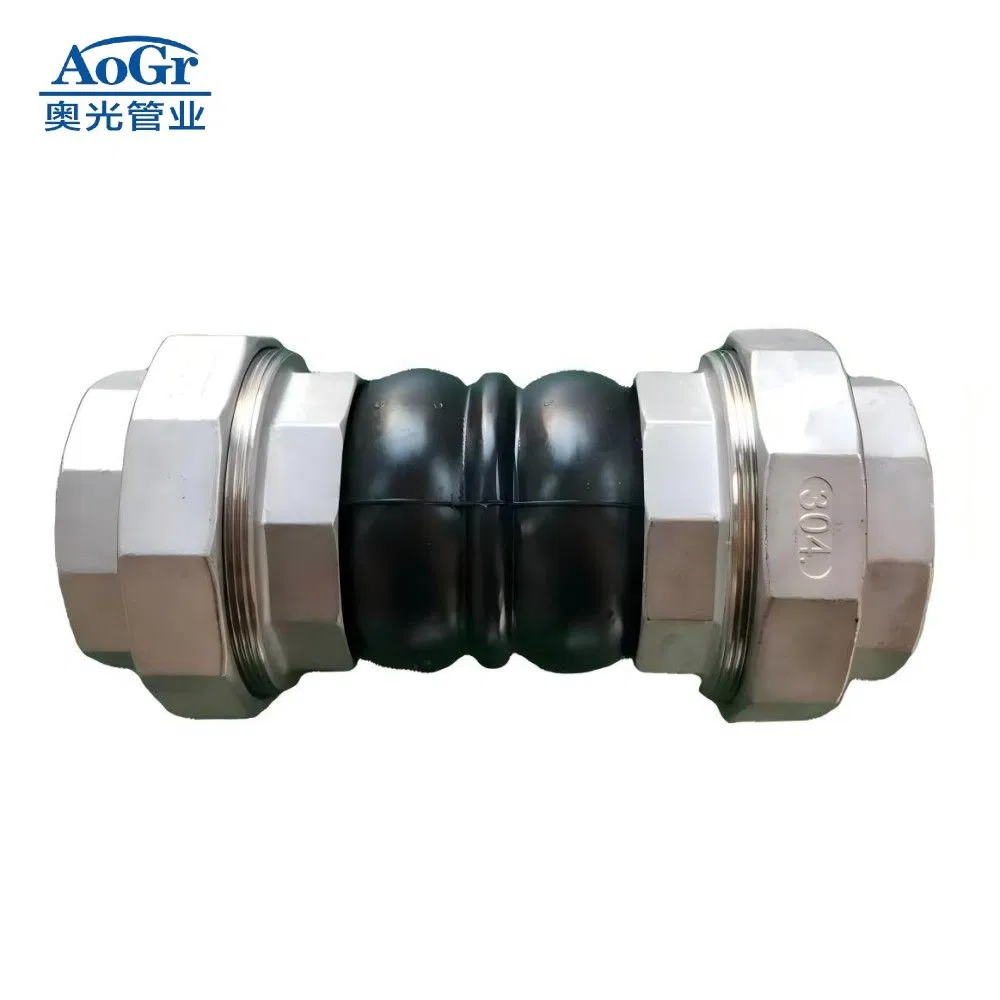

Single/Double Sphere EPDM/NBR/FKM/Viton/VMQ/SIL/NR/IIR/CR/ECO/CSM/Hypalon Rubber Expansion Joint/Pipe Joint PN6/PN10/PN16/PN25/ANSI B16.5 Class 150 lb
460 ₽
Доставка из Китаяот 3–20 дней
Поддержкана всех этапах
Безопасная оплатапо счёту и договору
Кэшбек6 монет
Описание товара
Характеристики
| Model NO. | Rubber Expansion Joint |
| Connection | Flange, M/F Thread, Welding, Clamp, Quick Coupling |
| Kind | Rubber Expansion Joint |
| Type | Axial, Transverse, Angular |
| Head Code | Round |
| Material | EPDM, NBR, Nr, FKM, Sil, Cr, Iir, Eco, Csm,Hypalon |
| Surface Treatment | Vulcanized, Smooth Polishing |
| Customized | Customized |
| Certification | ISO14001, ISO9001, ISO45001 |
| Warranty | 12 Months |
| Application | Water, Air, Oil, Gas, Steam, Acid, Alkali, Solvent |
| Diameter | DN15 - DN2000 mm |
| Inner Core | Rubber Sphere Body (PTFE-Lined Available) |
| Working Pressure | 0.6 to 6 MPa (6 to 60 Bar) |
| Working Temperature | -60°C to 300°C (-76°F to 572°F) |
| Trademark | AoGr |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Origin | Jiangsu, China |
| HS Code | 4016999090 |
| size | DN15 - DN2000 mm |
Производитель
Jiangsu Aoguang Corrugated Pipe Co., Ltd.
Все товары бренда →Как сделать заказ
01Добавьте товар в корзину или пришлите ссылку
02Менеджер уточнит детали и выставит счёт
03Выкупаем, проверяем и отправляем в Россию
Доставка и оплата
Доставка из Китая занимает от 3 до 20 дней в зависимости от способа отправки. Оплата — по счёту для юридических лиц или картой для физических. Подробнее на странице доставки и оплаты.
