SKU: 578422

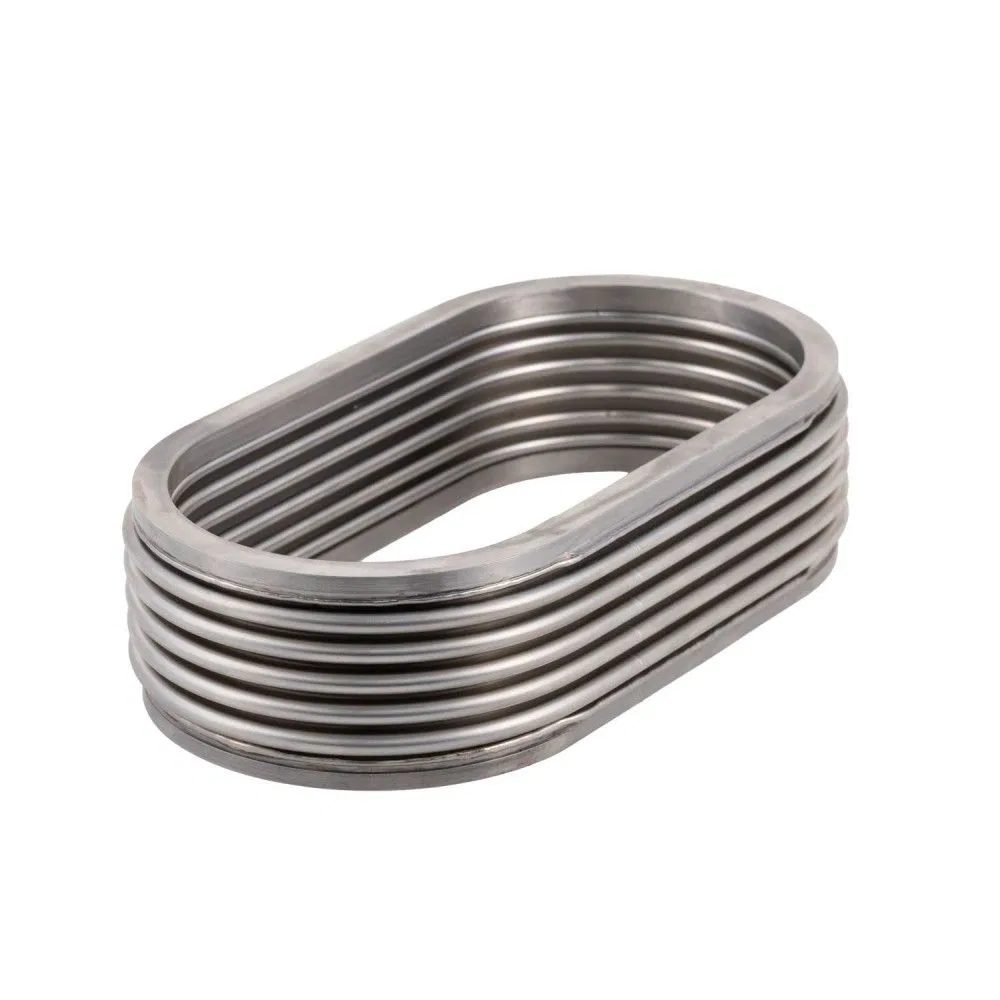

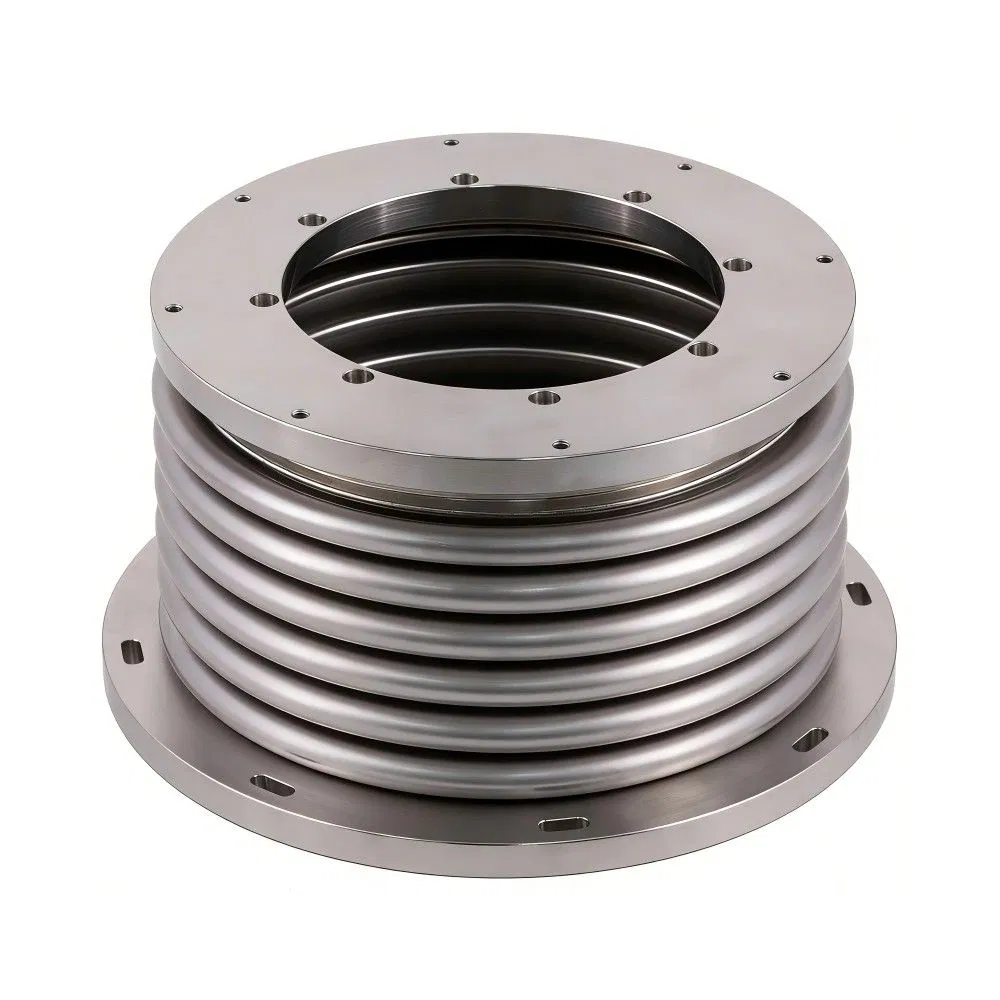

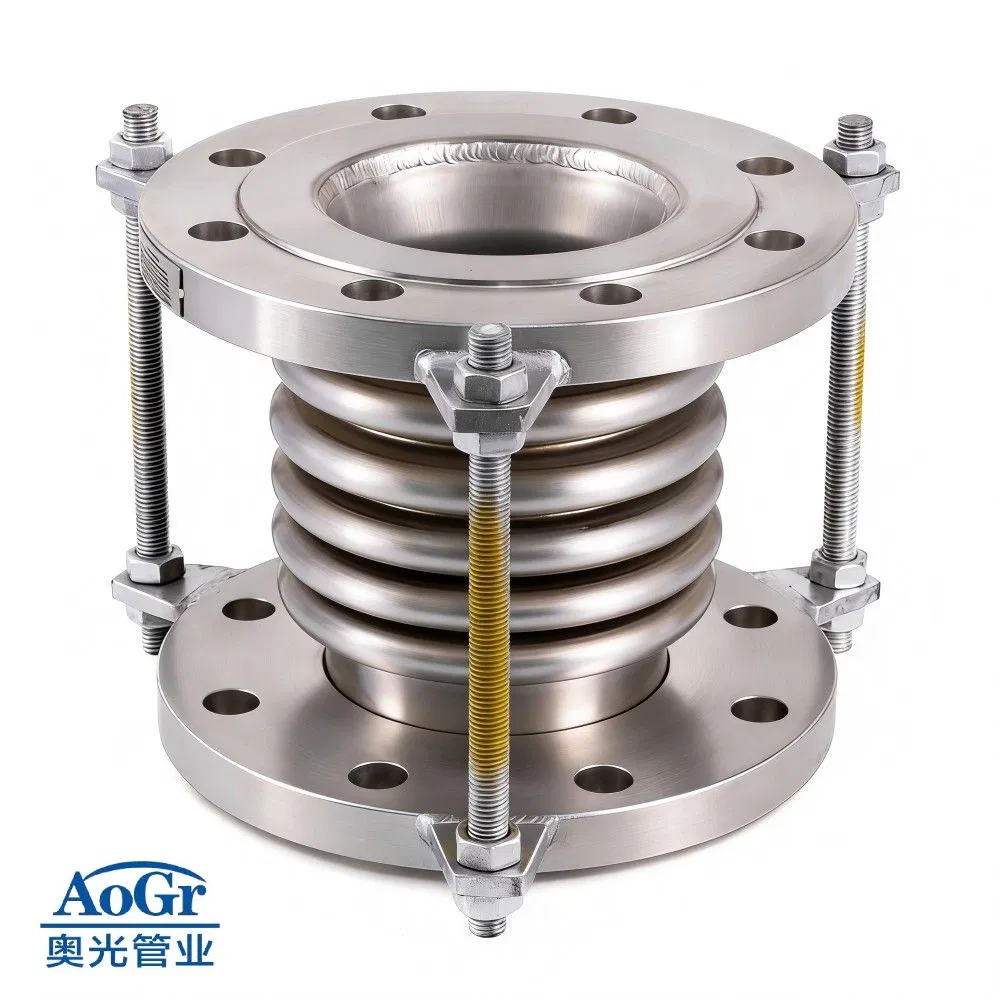

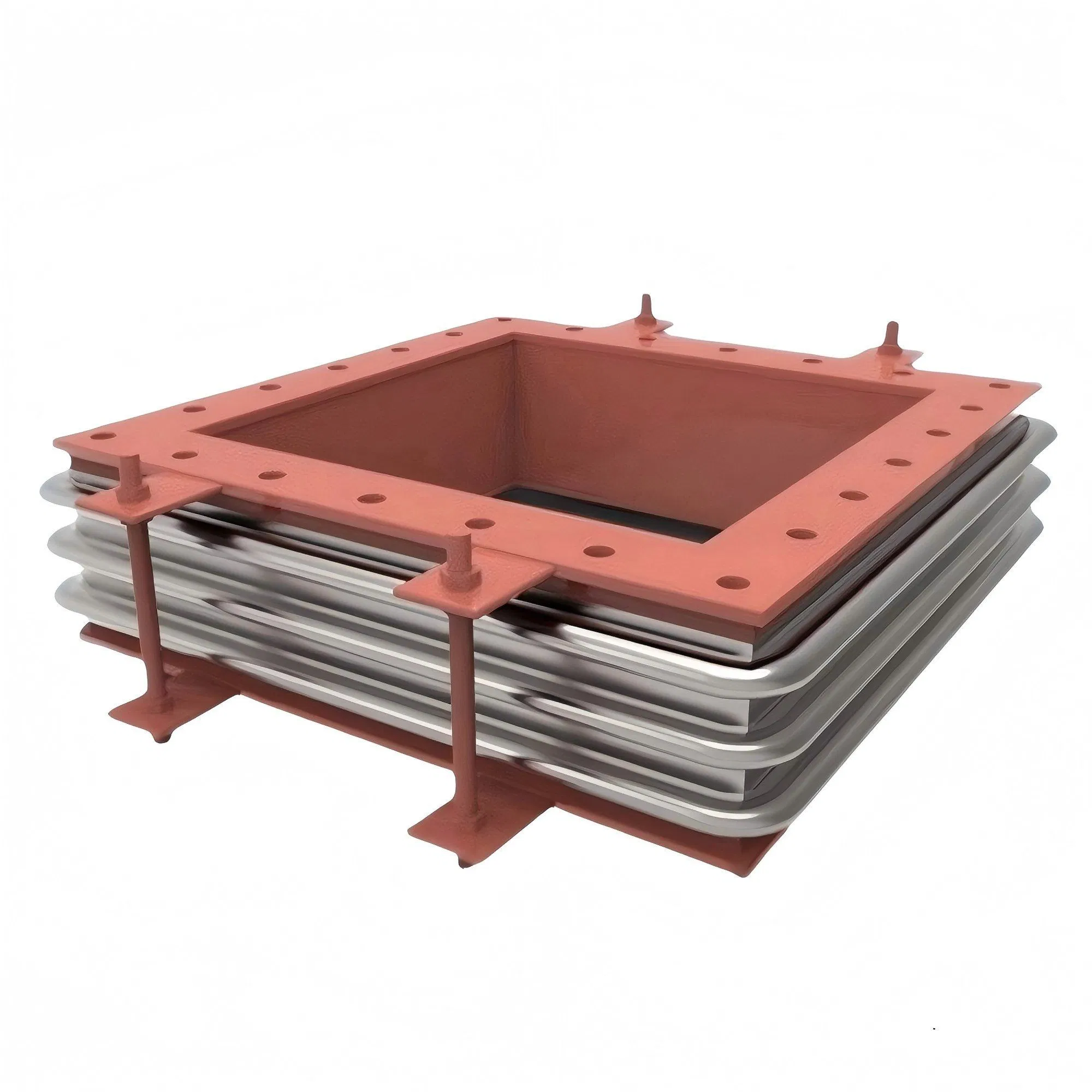

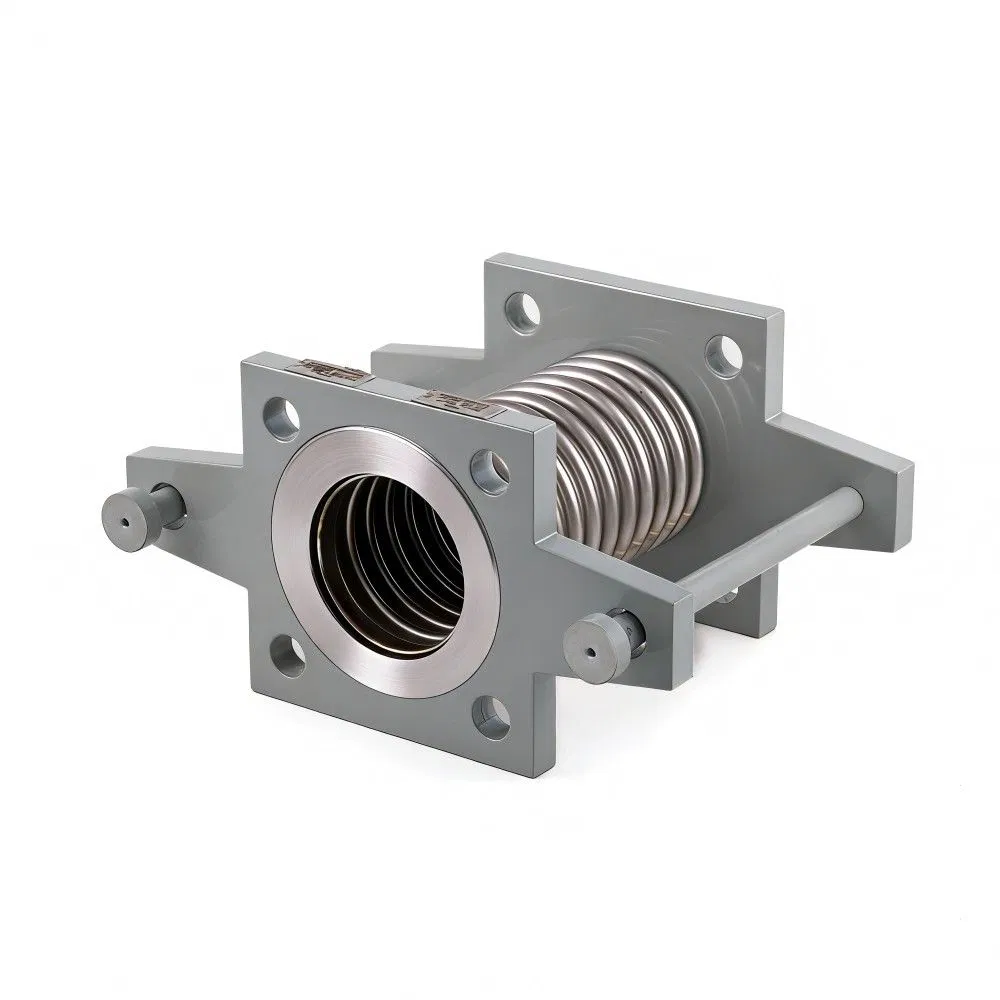

Heavy Duty 304/321/316L Stainless Steel Corrugated Flexible Metal Bellows Expansion Joint/Pipe Joint for Industrial Fluid Pipeline

Name: Heavy Duty 304/321/316L Stainless Steel Corrugated Flexible Metal Bellows Expansion Joint/Pipe Joint for Industrial Fluid Pipeline
Brand: Jiangsu Aoguang Corrugated Pipe Co., Ltd.
SKU: 578422
Price: 460.00 RUB
Availability: InStock

Бренд: Jiangsu Aoguang Corrugated Pipe Co., Ltd. Категория: Expansion Joint Мин. заказ: 10 шт.

460 ₽

♡

Доставка из Китаяот 3–20 дней

Поддержкана всех этапах

Безопасная оплатапо счёту и договору

Кэшбек6 монет

Описание товара

Характеристики

Model NO.	Expansion Joint Flanged
Connection	Flange, Welding, Clamp, Screw, Press Connection
Kind	Corrugated Compensator
Type	Axial, Transverse, Angular
Head Code	Round, Oval, Rectangular
Material	Stainless Steel
Surface Treatment	P&P, Ep, Sb, Pls, Brs/Sf, SC/PC, HDP
Customized	Customized
Certification	ISO14001, ISO9001, ISO45001
Warranty	12 Months
Application	Water, Air, Oil, Gas, Dust, Chemicals
Diameter	DN32 - DN8000 mm
Inner Core	Stainless Steel Corrugated Bellows
Working Pressure	-0.1 to 4 MPa (-1 to 40 Bar)
Working Temperature	-196°C to 1050°C (-321°F to 1922°F)
End Fittings	Flange, M/F Thread, Welding, Clamp, Quick Coupling
Braid Layers	None, Single or Double Braided (or Strip Braiding)
Trademark	AoGr
Transport Package	Standard Packaging or Customized
Specification	Standard Specifications or Customized
Origin	Jiangsu, China
HS Code	73079900
size	DN32 - DN8000
