SKU: 445326

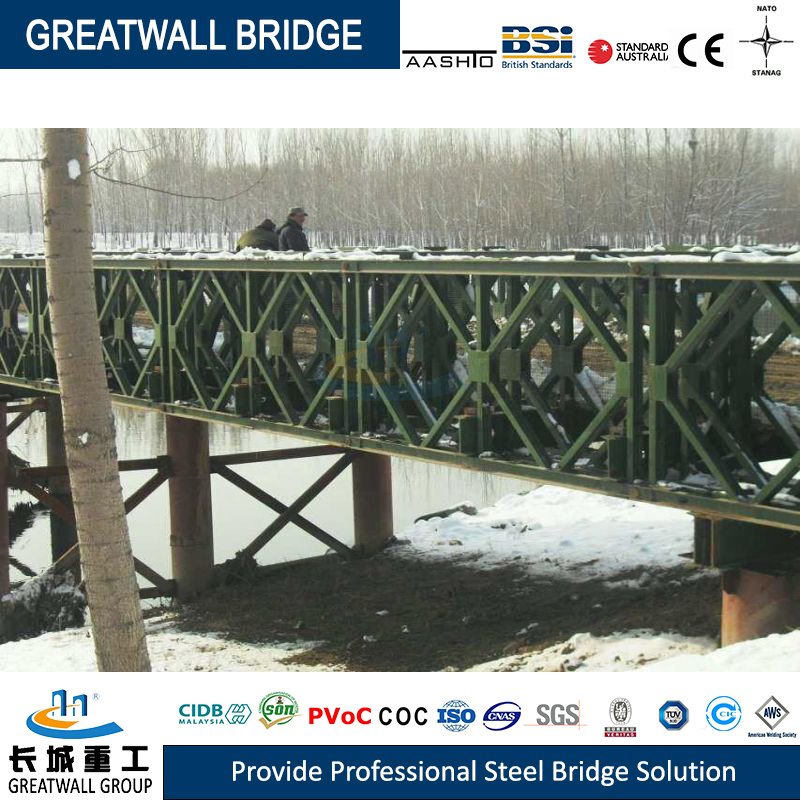

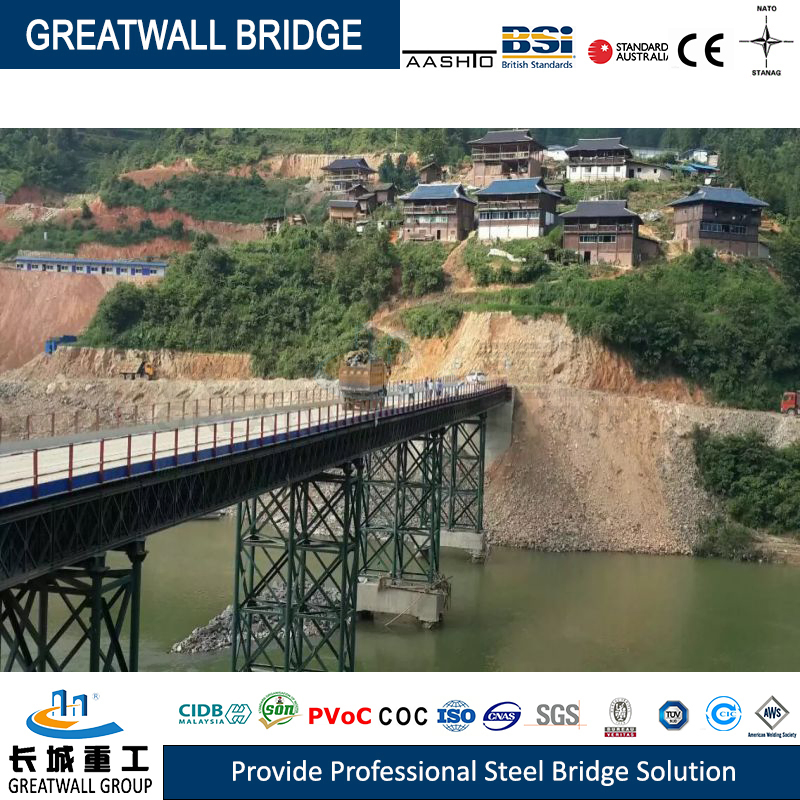

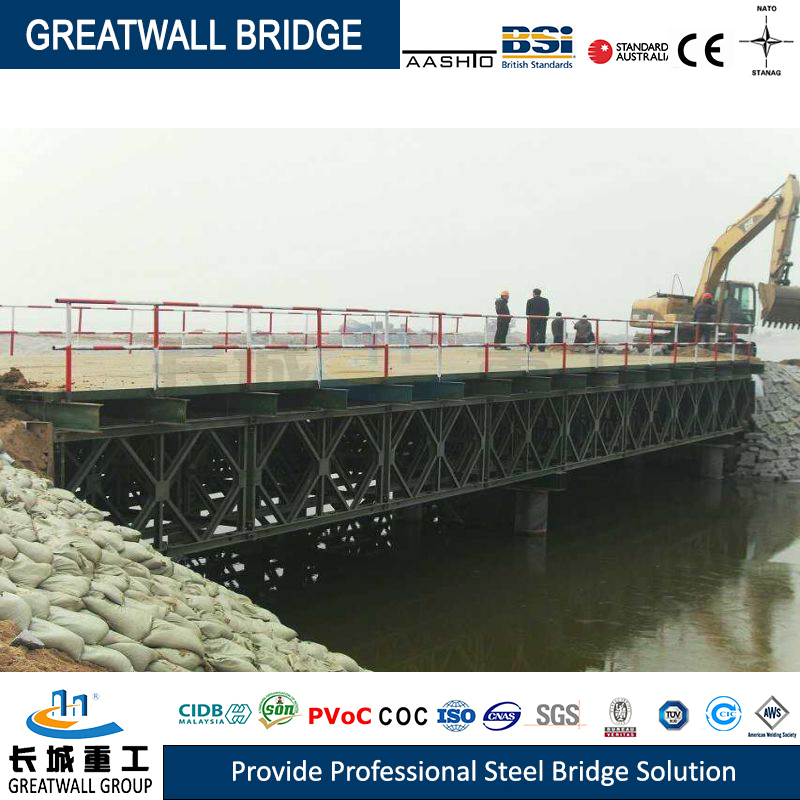

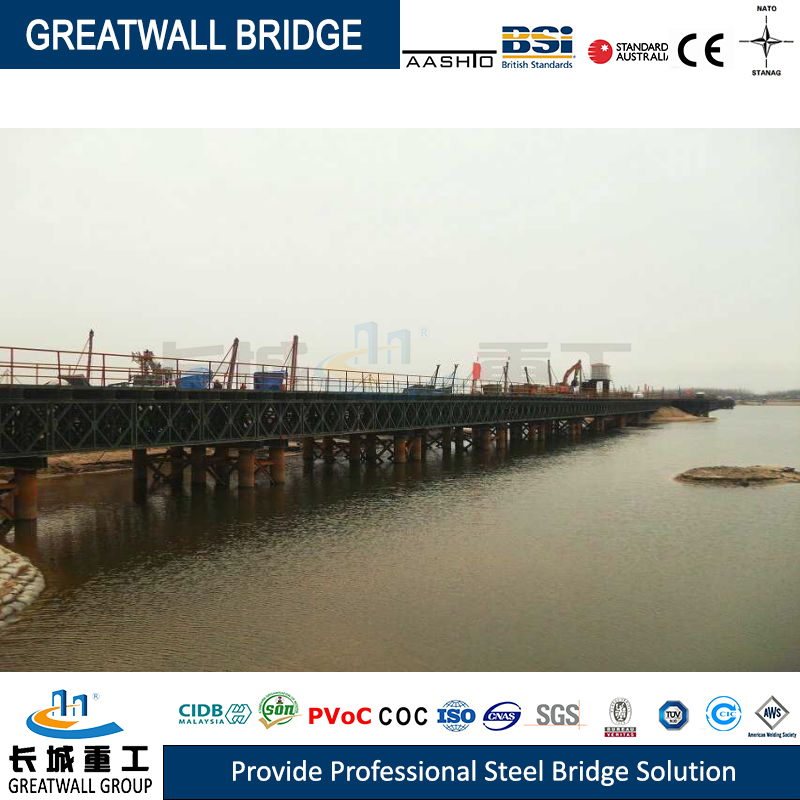

Bailey Trestle Bridge Piers and Deck Modular Design on-Site Construction
82 800 ₽
Доставка из Китаяот 3–20 дней
Поддержкана всех этапах
Безопасная оплатапо счёту и договору
Кэшбек1242 монет
Описание товара
Характеристики
| Model NO. | Bailey Type Trestle Bridge And Platform |
| After-sales Service | Guidance and Installation Services |
| Warranty | 3 Years |
| Certification | DIN, JIS, GB, BS, ASTM, AISI |
| Life | Temporary Bridge |
| Across Way | Fixed Bridge |
| Lane Position | Deck Bridge |
| Usage | Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge |
| Scale | Middle Bridge |
| Stress Characteristics | Truss Bridge |
| Material | Steel Bridge |
| Steel Grade | S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
| Loading Capacity | Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24 |
| Bridge Deck Net Width | 4m/ 4.2m |
| Maximum Free Span Length | 51m =170FT |
| International Panel Dimension | 3048mm*1450mm(Holes Center Distance) |
| Trademark | GreatWall |
| Transport Package | Transported by Container/Truck in Strong Packing |
| Specification | Customizable |
| Origin | Zhenjiang |
| HS Code | 7308100000 |
Производитель
Zhenjiang Great Wall Heavy Industry Technology Co., Ltd.
