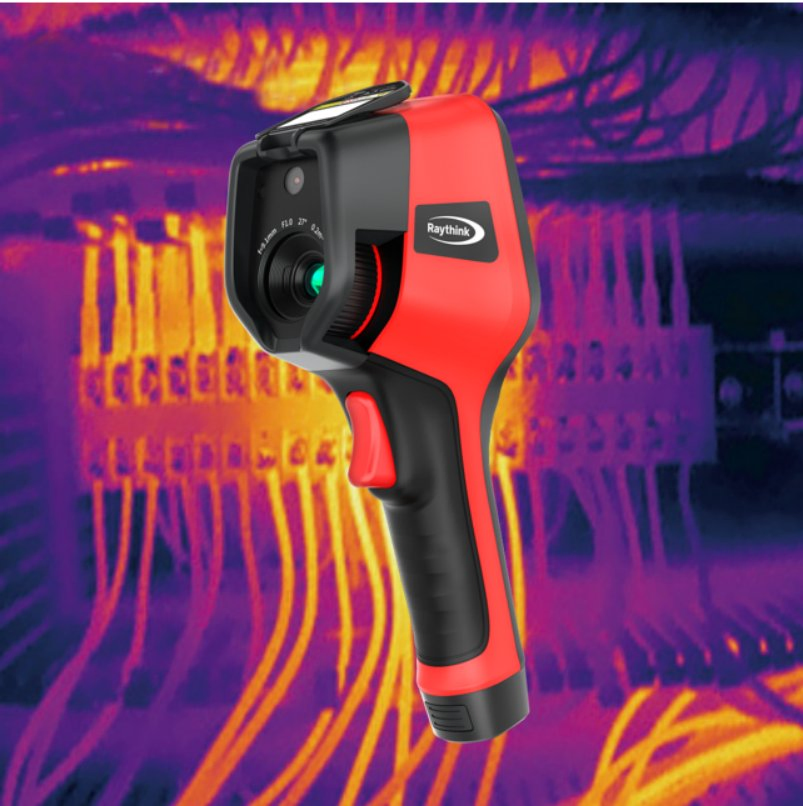

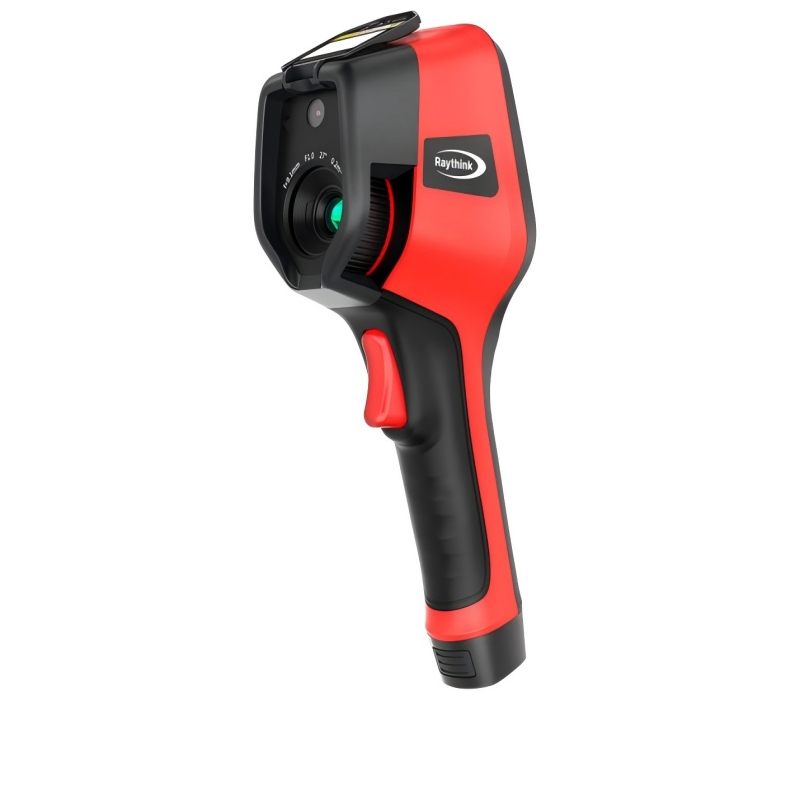

Capture Small Hot-Spots Handheld Thermal Camera with Infrared Detector for Circuit Design

SKU: 385034

Capture Small Hot-Spots Handheld Thermal Camera with Infrared Detector for Circuit Design

Бренд: Raythink Technology Co., Ltd. Категория: Термоизмерительные приборы Мин. заказ: 1 шт.

395 508 ₽

♡

Доставка из Китаяот 3–20 дней

Поддержкана всех этапах

Безопасная оплатапо счёту и договору

Кэшбек5932 монет

Описание товара

Характеристики

Model NO.	RM620
Measuring Method	Manual
Application	Industry
Weight	About 680g
Battery	Rechargeable and Detachable Lithium-Ion Battery
Detector Type	12μm Uncooled Infrared Detector
Infrared Resolution	640X512
Spectral Band	7.5-14μm
Netd	<35mk (25°c,F1.0)
Frame Rate	30Hz
Focal Length	19mm
Fov	23°× 18°
Ifov	0.63mrad
Focus Mode	Manual Focus
Measurement Range	-20°c~+150°c; 100°c~650°c
Display	3.5-Inch Touch Screen, 640×480 Resolution
Visible Light Camera	5 Megapixels
Image Mode	Infrared, Visible Light, Pip, Dual-Spec
Specification	258.4105.1102.3mm
