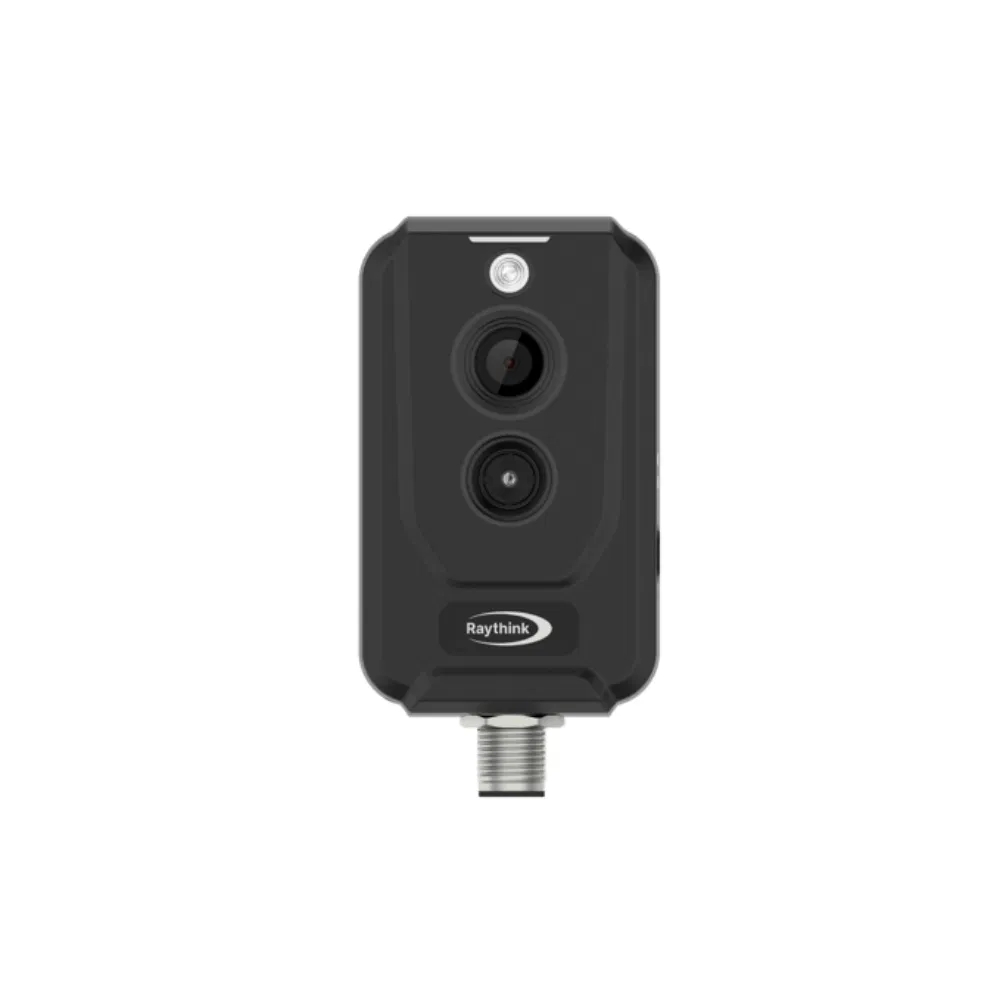

256× 192 Wlp Infrared Module Poe Power Supply Flexible Mounting Options Thermographic Cube Camera on-Line Thermograph Module

SKU: 384060

256× 192 Wlp Infrared Module Poe Power Supply Flexible Mounting Options Thermographic Cube Camera on-Line Thermograph Module

Бренд: Raythink Technology Co., Ltd. Категория: Термоизмерительные приборы Мин. заказ: 1 шт.

67 160 ₽

♡

Доставка из Китаяот 3–20 дней

Поддержкана всех этапах

Безопасная оплатапо счёту и договору

Кэшбек1007 монет

Описание товара

Характеристики

Model NO.	TN220
Measuring Method	Automatic
Application	Industry
Detector Type	Vox Uncooled Fpa Detector
Spectral Band	7.5~14μm
Netd	≤40mk(@25°c, F#1.0, 25Hz)
Resolution	256×192
Frame Rate	1-25Hz, Adjustable
Pixel Pitch	12μm
Focus Mode	Athermalized Prime Lenses
Visible Light Resolution	1600×1200
Light Filling	Support
Dual-Spectrum Fusion	Support
Reset Button	Support
Weight	152g
Ingress Protection Rating	IP67
Specification	93mm× 56mm× 31.5mm
