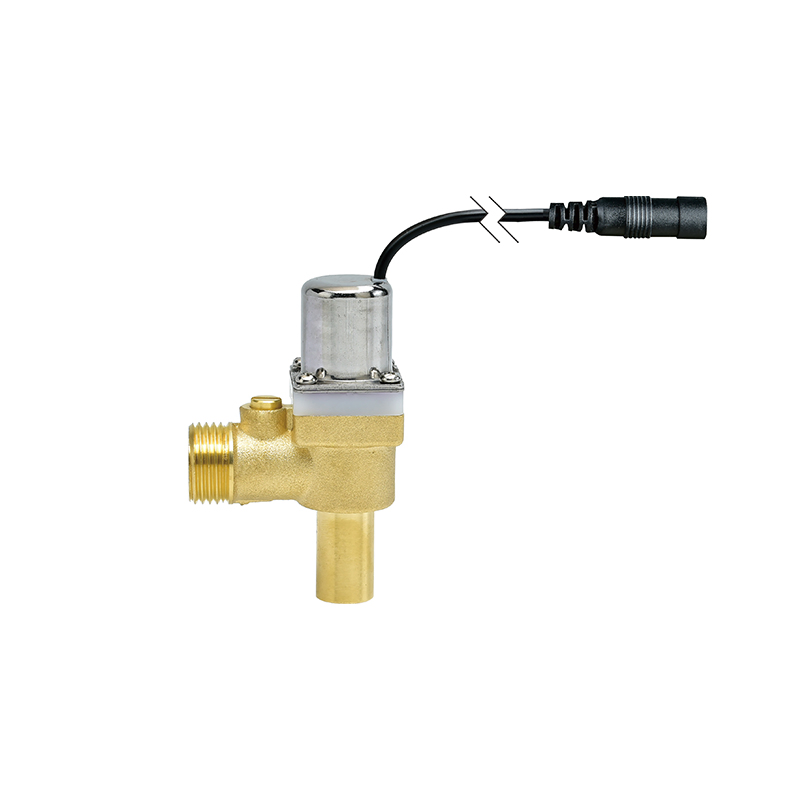

Xfdz Wall Concealed Chrome Auto Sensor Urinal Flush Valve Lacthing Water Valves 6V DC

Name: Xfdz Wall Concealed Chrome Auto Sensor Urinal Flush Valve Lacthing Water Valves 6V DC
Brand: Yueqing Xingfeng Electronics Factory
SKU: 264908
Price: 501.40 RUB
Availability: InStock

Бренд: Yueqing Xingfeng Electronics Factory Категория: Писсуар Мин. заказ: 200 шт.

501 ₽

♡

Доставка из Китаяот 3–20 дней

Поддержкана всех этапах

Безопасная оплатапо счёту и договору

Кэшбек7 монет

Описание товара

Характеристики

Model NO.	TCF-E1
After-sales Service	1 Year
Warranty	1 Year
Material	Brass
Drainage	Siphonic
Flushing Control Method	Induction Type
Mounting Type	Wall-mounted
Sensor	With Sensor
Water Consumption	Water Saving Type
Spud Location	Top Spud
Style	European
Color	Yellow
Application	Adult
Usage	Automatic Sensor Urinal Flusher
Operated Voltage	DC3V 6V 9V 12V
Pulse Width	30ms-50ms
Rate Voltage	DC6V
Min Current	320mA
Operating Pressure	0.02MPa~0.8MPa
Response Time	Open Less Than 0.15s; Close Less Than 0.5s
Working Type	Latching(Impulse) / Nc(Normally Closed)
Diameter of Port	G1/2''
Materials	Brass;Stainless
Dimension	7.53.48.2cm
Thread	28mm(13mm Male Thread Check Valve) Inlet;;24mm Rod
Seal Part Materials	EPDM/NBR/Silicone
Flow Rate	1.3L/Min~13.1L/Min
Connector	pH/Sm/1~8pin Waterproof Socket
Trademark	XFDZ
Transport Package	Standard Export Paper Box
Specification	Micro
Origin	China
HS Code	8481909000
